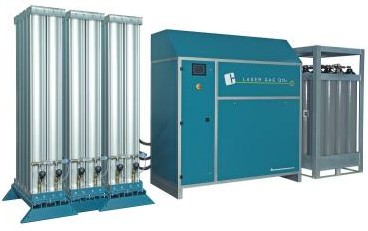

This unique gas generator is capable of producing nitrogen at very high pressure. It is available in various versions with different outputs, purity and pressure ratings.

The LASERGAS nitrogen generator can be used in any area of industry requiring a medium or high pressure nitrogen supply, or whenever intermittent demand requires large reserves of nitrogen to be kept ready for rapid consumption.

Applications

Laser cutting
Plastics moulding
Cylinder filling
Highly intermittent nitrogen requirements

Benefits

Optimised used of space
Generator and booster integrated in same chassis
Robust and dependable thanks to certified and extremely reliable components
Low maintenance costs
Nitrogen can be accumulated during low cost time bands

Technical Specifications

Output: from 5.4 to 32.5 Nm3/h
Delivery pressure: 200 bar (also available in 40 and 350 bar versions)
Gas purity: from 99.999% to 99.9% (from 5.0 to 3.0)
Integrated nitrogen production and compression systems
Integrated PLC control system for generator and compressor
Touch screen graphic interface
Built-in purity analyser
Output can exceed 100 Nm3 thanks to 200 bar accumulator
