Oxygen/CDA Heated Catalyst Purifier - PS15

PS15-GC50 Oxygen/CDA Heated Catalyst Purifier
PS15-GC50 Oxygen/CDA Heated Catalyst Purifier
PS15-MT3 Oxygen/CDA Heated Catalyst Purifier
PS15-MT3 Oxygen/CDA Heated Catalyst Purifier
PS15-MT15 Oxygen/CDA Heated Catalyst Purifier PS15-MT15 Oxygen/CDA Heated Catalyst Purifier
PS15-MT50 Oxygen/CDA Heated Catalyst Purifier PS15-MT50 Oxygen/CDA Heated Catalyst Purifier


The PS15 Series MonoTorr gas purifiers are available for Oxygen and CDA (Clean Dry Air/Compressed Dry Air).
The purification process is a catalytic oxidation of reducing species, THC (Total Hydrocarbons), CO and H2. These impurities are converted to CO2 and H2O. If CO2 and H2O removal is required, then a purifier, such as the MicroTorr can be used after the PS15, to remove the CO2 and H2O that is generated by the PS15.
The PS15 series is designed for continuous uninterrupted operation, with no consumable components. Under normal use, there is no need to ever replace or regenerate the purification column, allowing for simple installation and operation.
The PS15 Series MonoTorr purifiers are ideally suited for Optical Fiber Manufacturing, Photolithography, and Mask Pattern Generation.

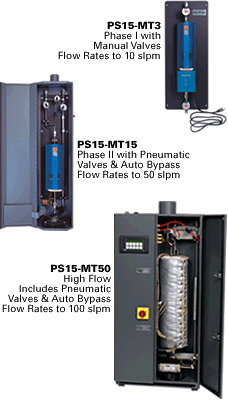

There are four models available:
  • PS15-GC50 for 0-3 slpm
  • PS15-MT3 for 0-10 slpm
  • PS15-MT15 for 0-30 slpm
  • PS15-MT50 for 0-100 slpm

Features

  • Continuous operation, non-consumable
  • Flow rates to 100 slpm. Higher flow rates availale upon request
  • Removes all THC's (CH4 + NMHC)
  • Low cost of ownership

PS15 Performance
Gases PurifiedImpurities RemovedOutlet Performance
O2, CDATHC (Total Hydrocarbons), CO, H2< 1 ppb

Ordering Information
Part NumberDescriptionPower
0-3 slpm
PS15-GC50-CDA-1CDA Purifier110-120V
PS15-GC50-CDA-2CDA Purifier220-240V
PS15-GC50-CDA-1-VCDA Purifier110-120V
PS15-GC50-CDA-2-VCDA Purifier220-240V
PS15-GC50-O-1Oxygen Purifier110-120V
PS15-GC50-O-2Oxygen Purifier220-240V
PS15-GC50-O-1-VOxygen Purifier110-120V
PS15-GC50-O-2-VOxygen Purifier220-240V
0-10 slpm
PS15-MT3-CDA-1CDA Purifier110-120V
PS15-MT3-CDA-2CDA Purifier220-240V
PS15-MT3-O-1Oxygen Purifier110-120V
PS15-MT3-O-2Oxygen Purifier220-240V
Optional equipment
BYBS-3Bypass assembly
0-30 slpm
PS15-MT15-CDA-1CDA Purifier110-120V
PS15-MT15-CDA-2CDA Purifier220-240V
PS15-MT15-O-1Oxygen Purifier110-120V
PS15-MT15-O-2Oxygen Purifier220-240V
0-100 slpm
PS15-MT50-CDA-1CDA Purifier110-120V
PS15-MT50-CDA-2CDA Purifier220-240V
PS15-MT50-O-1Oxygen Purifier110-120V
PS15-MT50-O-2Oxygen Purifier220-240V
Optional equipment
PS15-MT50-MODBUSModbus customer interface connection
PS15-MT50-EMOEmergency off button
