Carbon Dioxide Adsorbers - CAS-SERIES
|
The CAS-Series carbon dioxide adsorbers are designed to remove CO2 from compressed air. The carbon dioxide adsorber does this by using media beds featuring 13X molecular sieve in a pressure swing adsorption process. Adsorbed moisture and CO2 are vented to atmosphere while dry CO2-free air is provided at the outlet port. Standard voltage is 115 VAC. 230 VAC is available. Standard operating pressures from 3,4 to 10 Bar.
|
CAS-SERIES SPECIFICATIONS |
Model No. |
CAS1 |
CAS2 |
CAS3 |
CAS4 |
Flow Capacities at 6,9 Bar (lit/min) |
Inlet Flow |
50 |
100 |
160 |
320 |
Purge Flow |
20 |
40 |
70 |
140 |
Outlet Flow |
30 |
60 |
90 |
180 |
*Flow Capacities at 10 Bar (lit/min) |
Inlet Flow |
70 |
140 |
230 |
460 |
Purge Flow |
20 |
40 |
70 |
140 |
Outlet Flow |
50 |
100 |
160 |
320 |
*Flow Capacities at 3,4 Bar (lit/min) |
Inlet Flow |
28 |
52 |
90 |
182 |
Purge Flow |
21 |
38 |
66 |
132 |
Outlet Flow |
7 |
14 |
24 |
50 |
Connections (NPT) |
Inlet |
3/8" |
3/8" |
1/2" |
1/2" |
Outlet |
3/8" |
3/8" |
1/2" |
1/2" |
Dimensions (cm) |
Height |
53 |
62 |
102 |
112 |
Width |
17 |
17 |
24 |
25 |
Depth |
13 |
13 |
16 |
17 |
Weight (kg) |
5,4 |
6,8 |
16 |
30 |
*with orifice change |

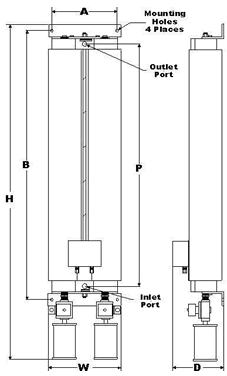

Dimensions CAS-Series (cm) |
Model | H | W | D | P | A | B |
CAS1 | 53 | 17 | 13 | 33 | 15 | 7 |
CAS2 | 62 | 17 | 13 | 38 | 15 | 7 |
CAS3 | 102 | 24 | 16 | 75 | 18 | 80 |
CAS4 | 112 | 25 | 17 | 85 | 23 | 94 |
CAS3-CAS4 adsorber shown with bracket top and bottom. CAS1-CAS2 has single 4-hole bracket. |
|
FEATURES
- Outlet CO2 content to less than 1 PPM
- Outlet flow capacities to 320 LPM
- Air dried to less than -73°C dew point
- Compact and lightweight design requires less space
- Standard solid state timer with built-in memory for energy savings
- Full re-pressurization means no pressure fluctuations
- Standard NEMA 4X Electrical
- Standard purge mufflers
TYPICAL APPLICATIONS
- TOC Analyzers
- Continuous Emissions Monitoring Systems
- Environmental Instruments
- FTIR Spectrometers
- Gas Chromatographs
- Laboratory Analyzers
- Laser cutters / welders
